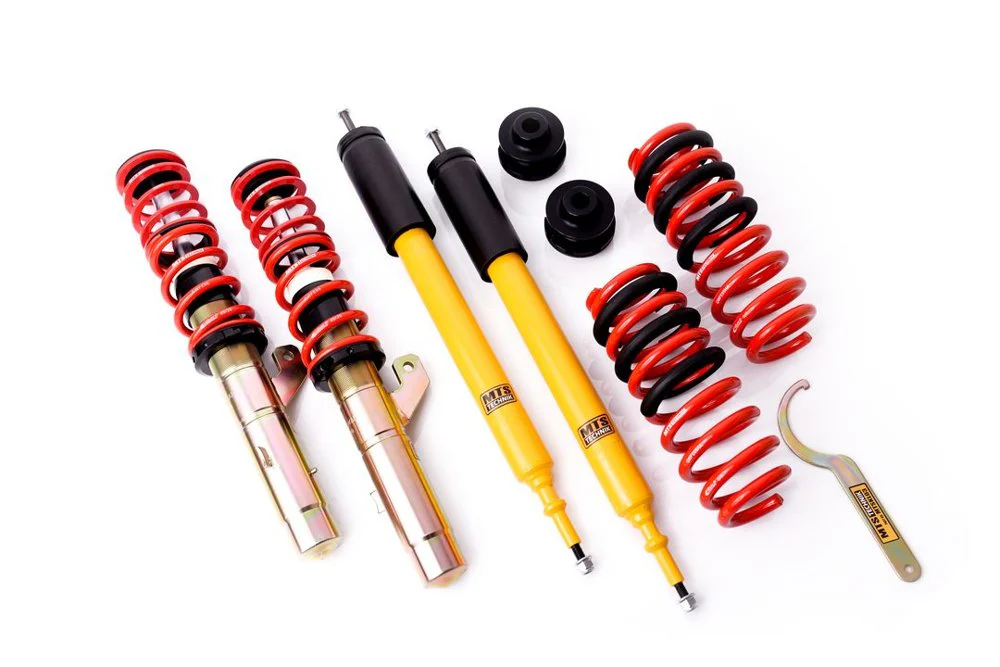

Coilover Kit  BMW 7 Series E23 (Weld In)

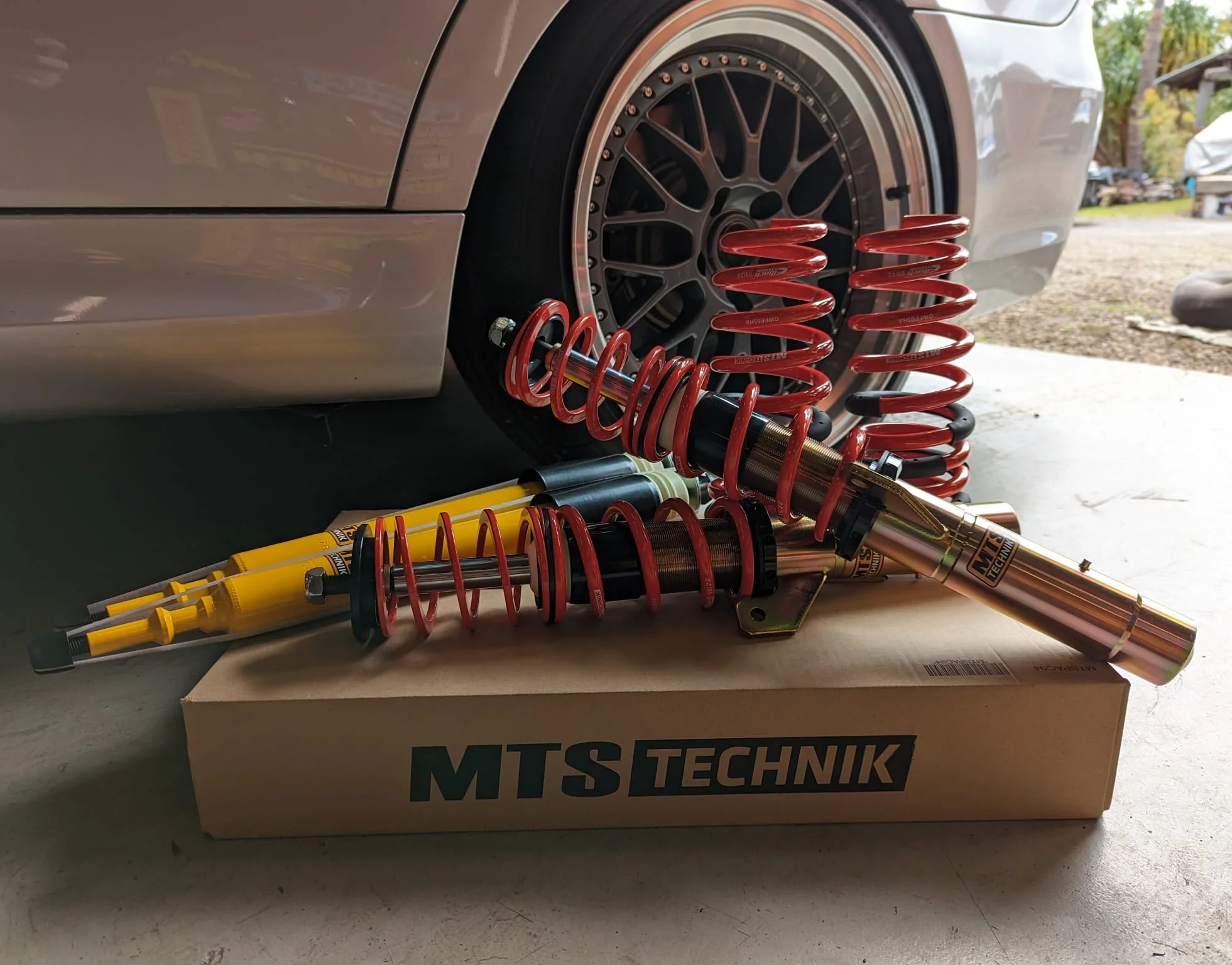

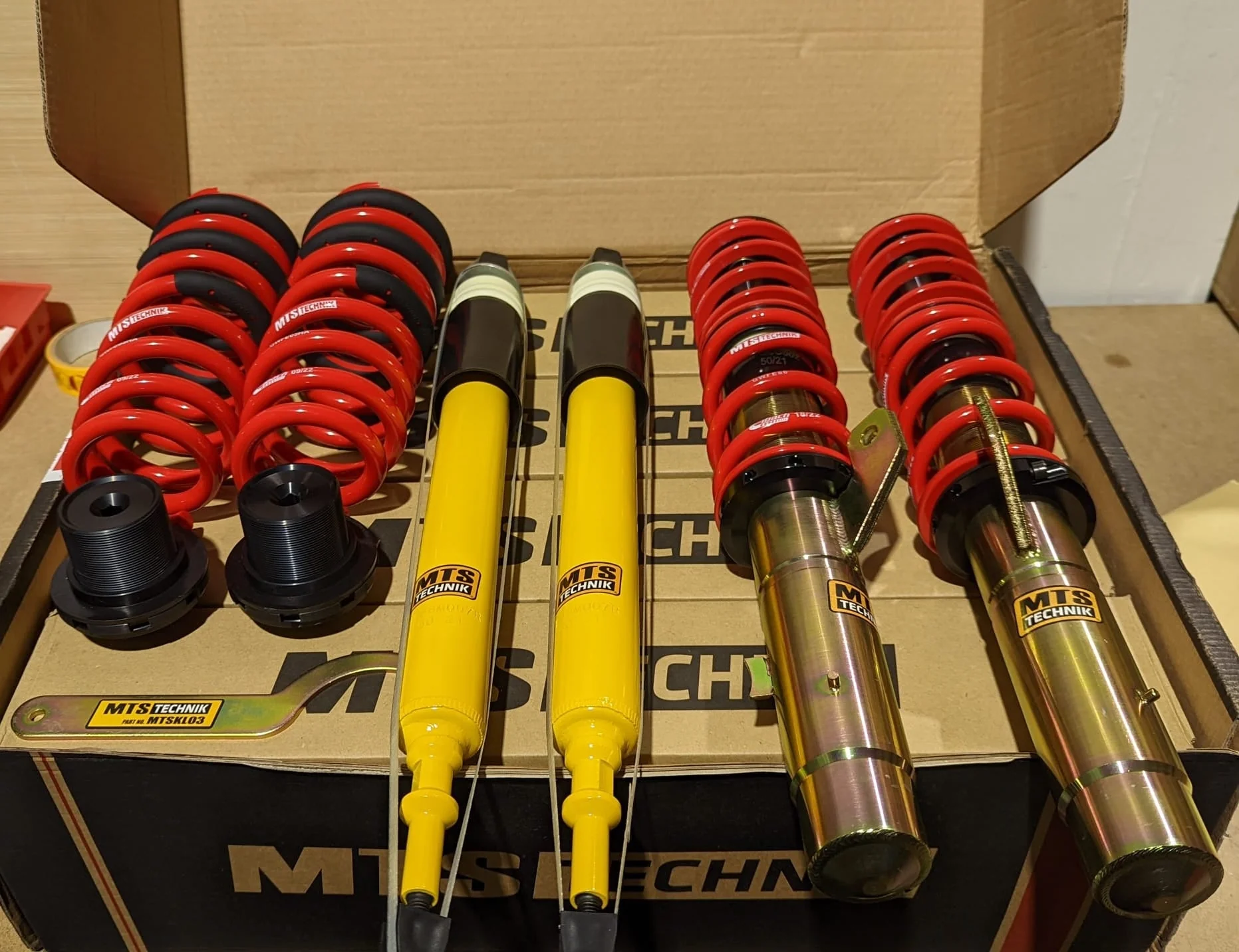

Coilover Kit MTS Technik for BMW 7 Series / E23, lowering the front axle between 35 - 95 mm, and rear between 20 - 110 mm. Dedicated for the years of: 05/77 - 08/81, for the engine version: 728 / 728i / 730 / 732i / 733i / 735i / 745i.

 2 year warranty with no mileage limit to confirm high quality.

 Suspension components characterized by increased corrosion resistance and made of the highest quality materials.

 The use of twin-tube technology guarantees stable shock absorber performance.

 Pressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.

 Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

 Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.

 Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.

 Coilover springs made by Eibach, the world leader in the sport springs industry.

CAR:

Make	BMW
Model	7 Series / E23
Type	E23
Engine	728 / 728i / 730 / 732i / 733i / 735i / 745i
Year	05/77 - 08/81

TECH SPECS:

Series:	street
Max. Axle Load FA:	-1040 kg
Max. Axle Load RA:	-1150 kg
Lowering FA:	35 - 95 mm
Lowering RA:	20 - 110 mm
Coilover Main Spring (Front):	Spring rate (70 N/mm)
Coilover Helper Spring (Front):	Spring rate (20 N/mm)
Coilover Main Spring (Rear):	Spring rate (60 N/mm)
Coilover Helper Spring (Rear):	Spring rate (20 N/mm)
Info:	strut diameter at the front axle of 52 mm
TUV Certificate:	no
Download instruction:	Download instruction
Download installation manual:	Download installation manual

PRODUCT NOTES

2 - Front and rear axle height adjustable (threaded shock absorber housing).

21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.

24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.

26 - Independent height adjustment at the lower brackets on the front dampers.

28 - Set includes 2x upper "camber plates" on the front axle.

29 - The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual.

32 - In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.

33 - Including M-Technik.

66 - In the case of cars equipped with Nivo, it will be required to replace the rear top mounts with OEM: 33521117657 or 33521126987.

67 - Suspension compatible only with a rear top mount with an inner diameter of 83mm - OEM number: 33521117997.
