Stage 3 - E46 Front Bolt In RACP Brace

Product image 1
Product image 2
Product image 3
Product image 4

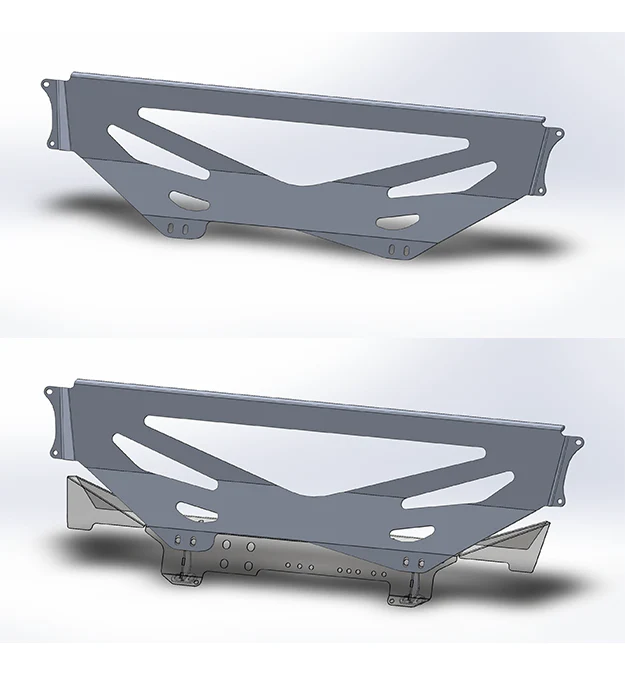

Stage 3 - E46 Front Bolt In RACP Brace

Stage 3 - E46 Front Bolt In RACP Brace

Fits:Ā All E46 coupe'sĀ (Non-M & M3) and sedanĀ chassis with split folding rear seats

Benefits:
-Braces the rear bulk head with the front two, rear subframe mounts
-Significantly increases torsionalĀ chassis rigidity
-Light weight aluminium construction
-Requires only 2 holes drilled to install
Note:Ā RequiresĀ Stage 2 - E46 Front Weld In RACP BeamĀ installed prior.

Material:Ā
-3mm Thick 190MPa YieldĀ Aluminium - Raw
-Fasteners included

Weighing only 1.6kg (3.5Lb) this brace is designed toĀ mimic the dividing wall in most E46 sedans that contributed aĀ 33% increase in torsional rigidity over their coupe counterparts.
This bolt in structure is the ultimate solution to increasing torsional rigidity with minimal weight compromise while further reinforcing the front two, rear subframe mounts on the E46 chassis.Ā Best of all, this brace is designed to fit flush against the rearĀ seats in their upright position sacrificing no cabin or boot space in the process!
$63.01

Original: $180.03

-65%
Stage 3 - E46 Front Bolt In RACP Brace—

$180.03

$63.01

Product Information

Shipping & Returns

Description

Fits:Ā All E46 coupe'sĀ (Non-M & M3) and sedanĀ chassis with split folding rear seats

Benefits:
-Braces the rear bulk head with the front two, rear subframe mounts
-Significantly increases torsionalĀ chassis rigidity
-Light weight aluminium construction
-Requires only 2 holes drilled to install
Note:Ā RequiresĀ Stage 2 - E46 Front Weld In RACP BeamĀ installed prior.

Material:Ā
-3mm Thick 190MPa YieldĀ Aluminium - Raw
-Fasteners included

Weighing only 1.6kg (3.5Lb) this brace is designed toĀ mimic the dividing wall in most E46 sedans that contributed aĀ 33% increase in torsional rigidity over their coupe counterparts.
This bolt in structure is the ultimate solution to increasing torsional rigidity with minimal weight compromise while further reinforcing the front two, rear subframe mounts on the E46 chassis.Ā Best of all, this brace is designed to fit flush against the rearĀ seats in their upright position sacrificing no cabin or boot space in the process!
